Broad Ion Beam (BIB) polishing for SEM/EDX/EBSD

The RES 102 system features:

• Ion energy: 0.8 to 10 keV
• Source current: Up to 4.5 mA
• Stage Rotation: 0.6 to 10 rpm
• Sample size SEM holder: max. Ø 25 mm × 12 mm
• Prepared area SEM holder: max. Ø 25 mm

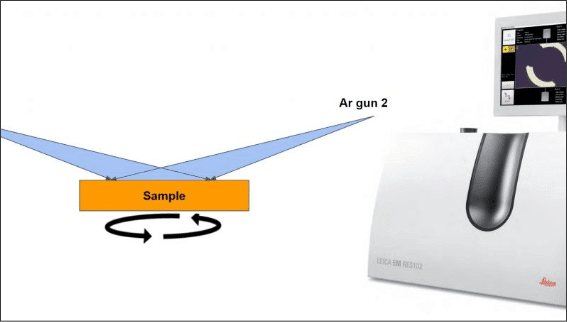

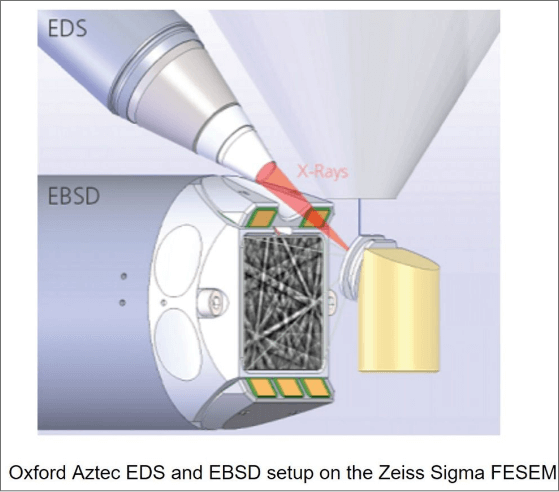

Among general electron microscopy applications, Electron Backscatter Diffraction (EBSD) is a surface technique – typical probing depth is in the range of a few tens nm for a beam energy of 20 kV. Smooth and damage-free surface is critically important to obtain high quality EBSD data. Compared to conventional mechanical polishing techniques, which can result in very rough surfaces and a thick damaged layer, low energy beam at grazing incident angle and rotating stage on the RES102 can effectively polish the surface to reduce roughness and remove the damaged layer.

With the programmable recipes of flexible parameters (beam energy, beam current, incident angle, stage rotating speed), the RES102 BIB has produced very nice results for our users for EBSD analysis. See recent examples below.

Application Examples (EBSD)

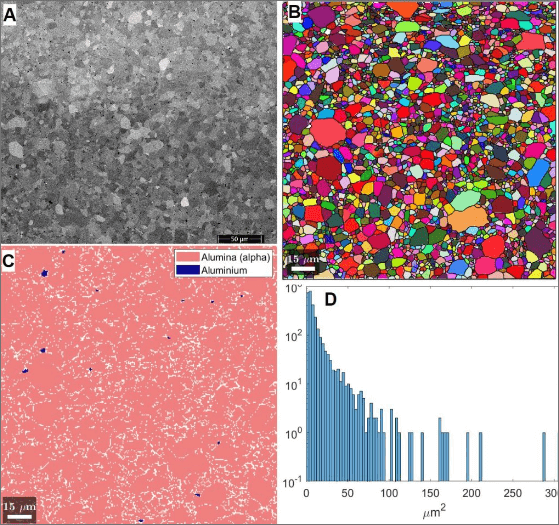

• Sample: 3D printed Alumina for structural applications
• Sample Courtesy: Cass (Haoyang) Li, Dr. James Hogan, Mechanical Engineering Department, Faculty of Engineering, University of Alberta
• Ion Milling process:
  • 8 kV, 3 mA, 3.5 degrees, 1.5 rmp for 120 mins
  • 8 kV, 2 mA, 2.5 degrees, 1.5 rmp for 60 mins
• EBSD mapping: 175 µm x 175 µm, stepsize 50 nm

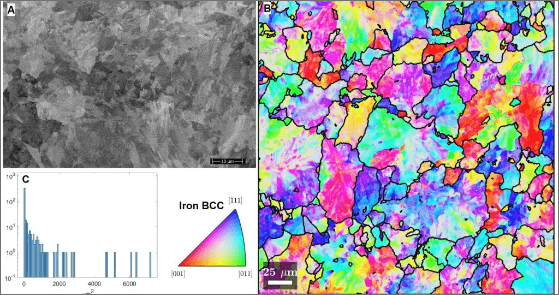

• Sample: Rail Steel
• Sample Courtesy: Stephen Okocha, Drs. Ben Jar and Michael Hendry, Mechanical Engineering Department, Civil and Environmental Engineering Department, Faculty of Engineering, University of Alberta
• Ion Milling process:
  • 8 kV, 3 mA, 2.5 degrees, 1.5 rmp for 60 mins
  • 6 kV, 2 mA, 2.5 degrees, 1.5 rmp for 60 mins
• EBSD mapping: 300 µm x 300 µm, stepsize 250 nm

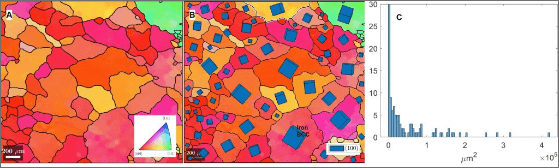

• Sample: Al-Cr-Fe-Ni medium-entropy alloy (MEA)
• Sample Courtesy: Guijiang Diao, Dr. Dongyang Li, Chemical and Materials Engineering Department, Faculty of Engineering, University of Alberta
• Ion Milling process:
  • 8 kV, 3 mA, 3.5 degrees, 1.5 rmp for 60 mins
  • 5 kV, 2 mA, 2.5 degrees, 1.5 rmp for 60 mins
• EBSD mapping: 2500 µm x 1500 µm, stepsize 500 nm
